CRPA simulator
CRPA simulator
CAST Navigation - CRPA and Attitude Determination Receiver Testing
DETAIL
System Features

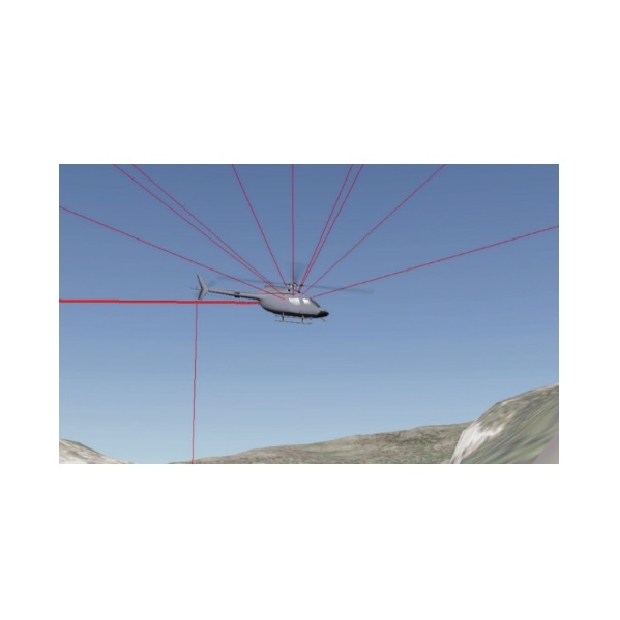

• Provides a precise, coherent, and repeatable RF “wavefront” that is a perfect solution for testing phased array (CRPA)
types of antenna systems
• Provides a dynamic solution representing the phase center for each antenna element which are referenced to the
phase center of the antenna manifold
• Jamming can be included in the CAST wavefront systems to provide precisely controlled interference signals for each
antenna element
• Ideal choice for military or commercial devices, where the ability to stimulate a phased-array or multi-element
antenna system is desired
Output Signal Types
• GPS: L1, L2, L2C, L5, C/A-Code, P-Code,Y-Code,
• SAASM, M-Code AES, M-Code MNSA
• BeiDou: BDS-B1L, BDS-B1C,
• GLONASS: L1, L2
• SBAS: WAAS, EGNOS, MSAS, GAGAN
Maximum Dynamics
• Velocity: > 60,000 m/s
• Acceleration: ± 150,000 m/s2
• Jerk: ± 150,000 m/s3
Signal Output Levels (Nominal)
• GPS: -160 dBW
• GLONASS: -161 dBW
• Beidou: -163 dBW
• SBAS : -160 dBW
