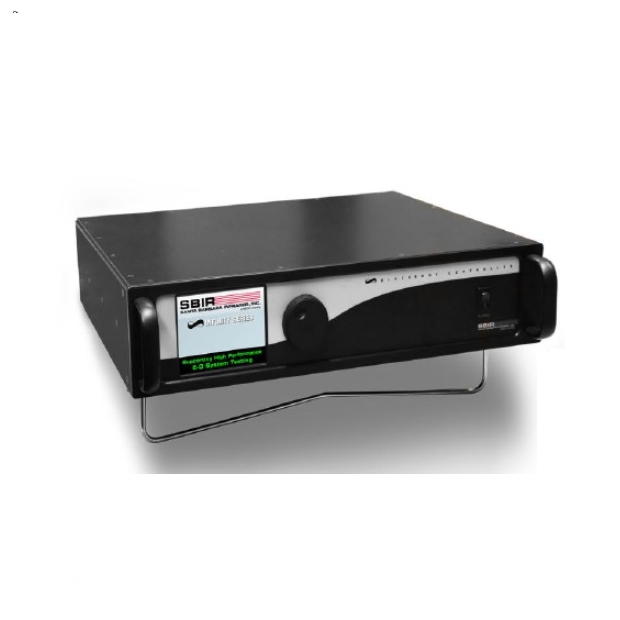

Infinity Differential Blackbody Series
Infinity Differential Blackbody Series
Santa Barbara Infrared’s Infinity Series of Differential Blackbodies (DB Series) are designed to support the most critical testing requirements. The Infinity blackbodies offer the best performance available. Fast,stable, uniform, accurate and reliable- these blackbody systems provide performance enhancements and features that set them apart from previously available systems.
DETAIL
A key feature is the new iProbe from SBIR.This intelligent temperature sensor is calibrated independently of the blackbody system. To re-calibrate the system you need only exchange the probe with a recently calibrated one. No special equipment is required thus minimizing downtime. Our blackbodies are designed for use as flood sources for non-uniformity correction or sensor calibration, and as differential sources for MRT, MTF, SiTF and other standard IR sensor characterization tests.
Features
• iProbe Temperature Sensors
• Temperature Accuracy of ±0.010°C (0°C-50°C),±0.0005 (T-25) elsewhere
• Emissivity (Average) > 0.970 (3-5.5μm), > 0.950 (8-14μm)
• 98% of Set ΔT or 0.01ºC. Whichever is Greater Over 90% of Emitting Surface Area
• 0.001°C Temperature Stability
• Ethernet, GPIB or RS-232 Interfaces
• -40°C to 175°C Absolute Temperature ; -25°C to 150°C Δ Temperature Available
• 4”, 6”, 8”, 12” Emitting Surface Size
• Optional Automatic Radiometric Compensation
• Multi-Function Controller
