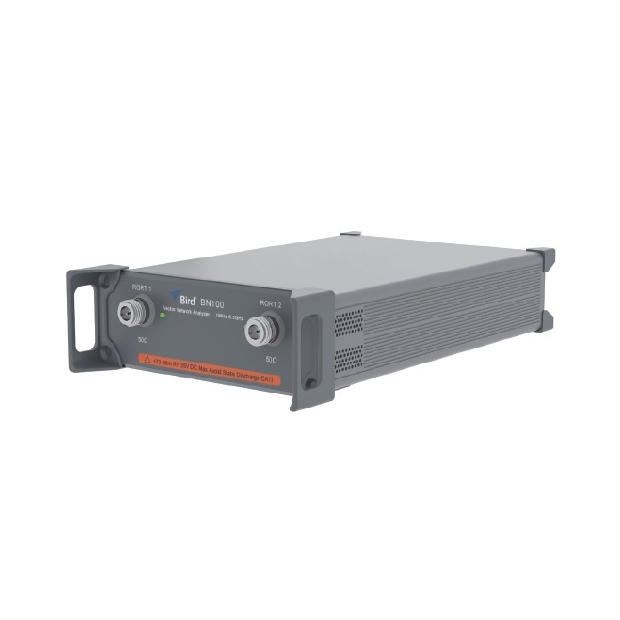

Bird BN100 Network analyzer USB - 1 MHz to 6.5 GHz ; 2 Port
Datasheet Download :  Bird BN100 USB VNA

Introduction :
BN100 USB Vector Network Analyzer offers wide dynamic range,low noise level, high resolution scanning with laboratory
and research grade performance. BN100 covers frequency range from 1MHz to 6.5GHz with 2-port and 2-path that competitive with most of the bench-top VNAs on the market. BN100 USB VNA provides measurement convenience by offering end user excellent performance and attractive price. BN100 VNA is suitable for laboratory, manufacturing and many other safety testing environment.

Features :

• Frequency Range: 1MHz to 6.5GHz
• Large dynamic range: >117dB (IFBW=10Hz), 121dB typ.
• Low Noise Level:<-120 dBm (IFBW=10 Hz)
• Low Trace Noise:10 mdB rms (IFBW=3 kHz)
• High Measurement Speed:120 μs/point (IFBW=30 kHz)
• Effective directivity: >42dB
• Support standard VISA
• Low Power Consumption:18W

• BN100 2-port USB 1MHz ~ 6.5GHz VNA
