Averna RP-6100 Series Multi-Channel RF Record & Playback
DETAIL
RF 紀錄器介紹 :
Frequency range of 10–6000 MHz,up to 4x40 MHz or 2x80 MHz bandwidth, 14-bit resolution, tight channel synchronization
Records up to 20 hours, includes RF Studio for quick setup/analysis. Play back recordings anywhere,visualizing real signals
and impairments for in-depth, repeatable analysis and product testing.
特色 :
• Frequency range of 10–6000 MHz, covering all GNSS bands (L1, L2 and L5)
• Multi-channel (1-4): Up to 4x40 MHz or 2x80 MHz bandwidth at 14-bit resolution (‹ 1 Hz)
• User-friendly analysis tools: Noise Figure,Spectrum, Power, and Histogram views
• Storage Capacity 4, 8 or 16 TB (up to 20 hours of recordings)
• Supports ATSC, Bluetooth, DAB, DVB-T, FM, GNSS,HD Radio (FM), IBOC, RDS/TMC, WiFi, etc.
Models:
• RP-6120 (2 ch.)

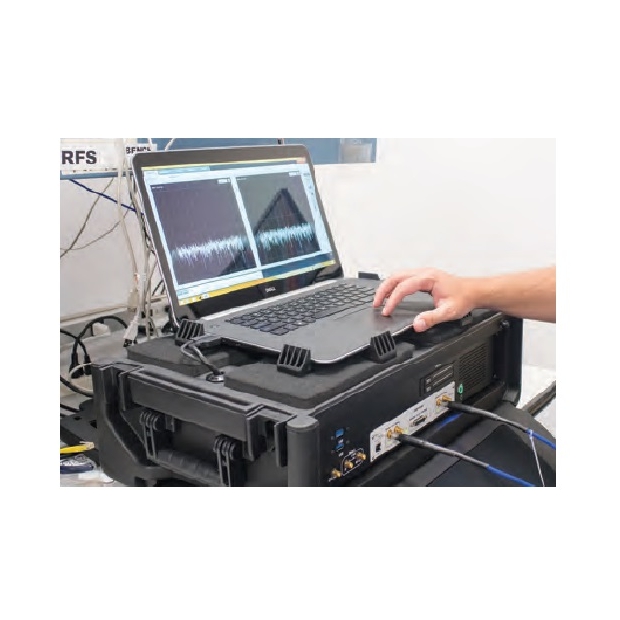

• RP-6120P (2 ch. portable),Includes laptop + rugged case; can run on 12V or battery (~40 minutes); DriveView option
• RP-6120D (2 ch. desktop)
• RP-6140 (4 ch.)
